ABB Terra DC egyenáramú villámtöltő

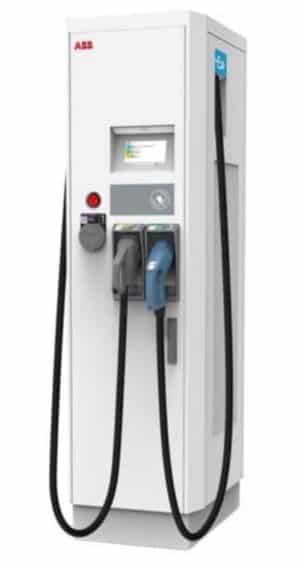

ABB Terra CE 54 CJT 4N1-7M-0-0
- Terra CE 54 CJ 4N1-7M-0-0 Terra 50 kW charger, CCS 2 + CHAdeMO, 3.9 m cables, CE
- Leírás:
- Terra 54 elektromos autó töltő, 50 kW kimenő teljesítmény, 200-500 V, 125 A, 1db CCS 2 and 1db CHAdeMO connectors, 3.9 m kábel hossz, 7″ érintős kijelző, RFID kártya olvasó, 3G/4G modem, CE
ABB Terra DC
- Extended Product Type:
- Terra CE 54 CJT 4N1-7M-0-0
- Product ID:
- 6AGC071512
- ABB Type Designation:
- Terra XX(HV) YYY
- EAN:
- 8719874451406
- Alternative Product Reference:
- 3P149904000A
- Catalog Description:
- Terra CE 54 CJT 4N1-7M-0-0 Terra 50 kW charger, CCS 2 + CHAdeMO + AC Type 2 socket 22 kW, 3.9 m cables, CE
- Long Description:
- Terra 54 EV charger, 50 kW output power, 200-500 V, 125 A, CCS 2 and CHAdeMO connectors, 3.9 m long cables, AC Type 2 socket (22 kW), 7″ touch-display, RFID reader, 3G/4G modem, CE
ABB Terra DC
- EV Connectors:
- (CCS 2) 1 piece
(CHAdeMO) 1 piece
- Number of Socket Outlets:
- (AC Type 2) 1 piece
- Cable Length:
- 3.9 m
- Output Power:
- DC 50 kW
AC 22 kW
- Output Voltage (Uout):
- DC 200 … 500 V
AC 400 V
- Output Current:
- DC 125 A
AC 3-phase 32 A
- Connection Power:
- 77 kW
- Supply Voltage:
- AC 3-phase 380 … 415 V
- Input Current:
- AC 3-phase 112 A
- Operating Frequency (fsw):
- 50 … 60 Hz
- Current Type:
- DC
AC 3-phase
- Number of Phases:
- 3
- Number of RCDs Electric Vehicle Supply Equipment:
- Type A 2 piece
Type B 1 piece
- Number of Miniature Circuit Breakers (MCBs):
- 6
- Ambient Air Temperature:
- Operation -25 … +70 °C
Storage -40 … +80 °C
- Maximum Operating Altitude Permissible:
- Without Derating 2500 m
- Communication Interface:
- 4G
Ethernet
- Load Management Method:
- OCPP – Based
- Authentication Method:
- RFID
NFC
Pincode
App
- Energy Meter Type:
- DC
AC
- Screen Size:
- 7 in
- Mounting Type:
- Floor fastening
- Housing Material:
- Steel
- Degree of Protection:
- acc. to IEC 60529 IP54
- Impact Resistance Rating:
- Housing IK10
Display IK08
Dimensions
- Product Net Depth / Length:
- 0.780 m
- Product Net Height:
- 1.9000 m
- Product Net Weight:
- 325 kg
- Package Level 1 Units:
- euro pallet 1 piece
- Package Level 1 Width:
- 0.80 m
- Package Level 1 Height:
- 2.15 m
- Package Level 1 Depth / Length:
- 1.20 m
- Package Level 1 Gross Weight:
- 370 kg
- Package Level 1 EAN:
- 8719874451406
Ordering
- Country of Origin:
- European Union (EU)
- Customs Tariff Number:
- 85044055
- Selling Unit of Measure:
- piece
- Minimum Order Quantity:
- 1 piece
- EAN:
- 8719874451406
- ETIM 8:
- EC002883 – Charging device E-Mobility
Additional Information
- Declaration of Conformity – CE:
- 9AKK107680A5017
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- WEEE Category:
- 4. Large Equipment (Any External Dimension More Than 50 cm)
- Declaration:
- CE
- Standards:
- CE
EMC Class B
